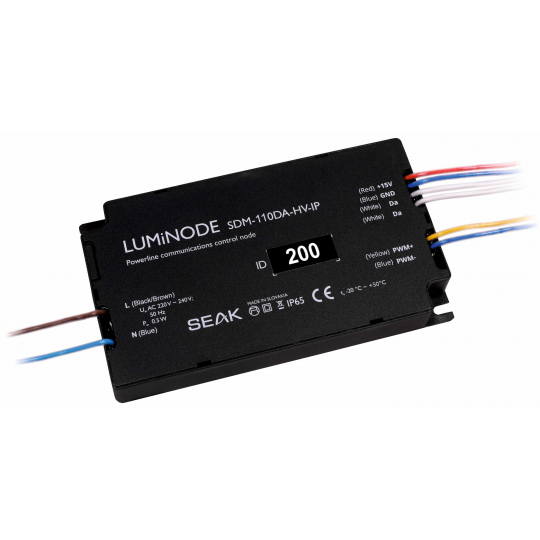

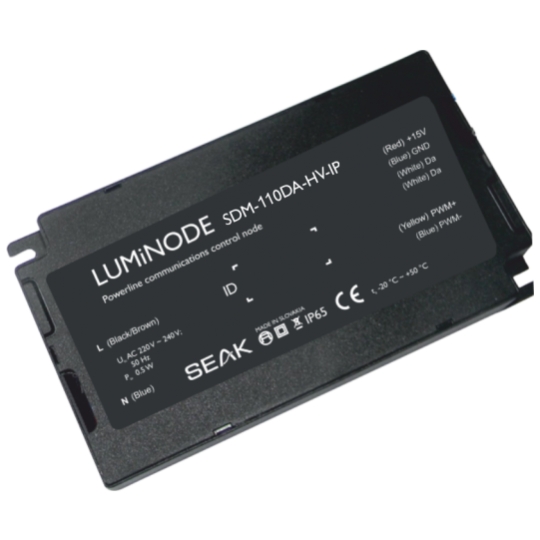

LUMiNODE SDM-110DA-HV-IP
Ordering code:LMNDAIPHV
LUMiNODE SDM-110DA-HV-IP module is designed for two-way communication of luminaires with a two-way IEC62386 (DALI) bus driver or PWM output and the control unit over the powerline for high voltage environments.
- Two-way Powerline Communication QM-50-SSI3
- Lighting control in real time
- Autonomous lighting control
- Ability to mass upload a new schedule in groups
- Both output buses are galvanically isolated from the input
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | AC 220V - 240V; 50 Hz | Operating temperature | -20 °C to +75 °C |
| Consumption | 0,5 W | Protection class | II. |
| Output | 2-way IEC62386 interface (DALI), PWM (from an external source 15V - DPU1) | Weight | 95 g |
| IP rating | IP20 | Dimensions (LxWxH) | 123x70x16,5 mm |
