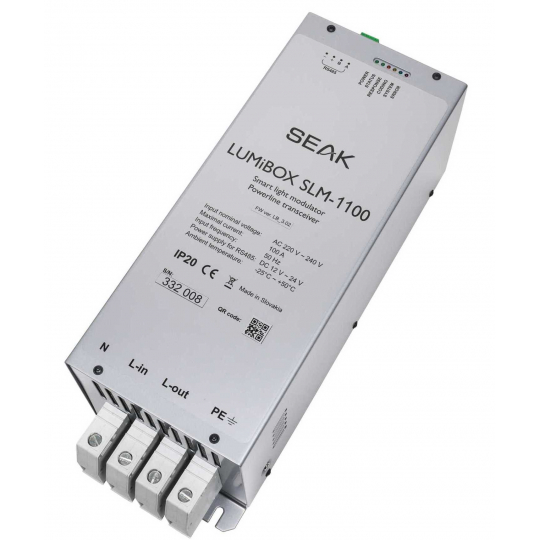

LUMiBOX SLM-1100
Ordering code:SLM1100
The modulator unit LUMiBOX SLM-1100 (Smart Light Modulator) forwards control commands received from a control unit via RS485 through powerlines to luminaires with installed LUMiNODE modules. In case of luminaires equipped with certified drivers compatible with IEC62386 (known as DALI) and LUMiNODE SDM-DIG or LUMiNODE/NEMA7 the unit is able to receive status reports from those drivers and will send them to the control unit.
- Two-way powerline communication QM-50-SSI3
- Communication with the controller via RS485 bus (MODBUS protocol)
- Allows auto-tune for bad power factor
- Supports D4i drivers
- Has a built-in electrometer for accurate electrical measurements
- Remote firmware upgrades
- Thermal protection
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | AC 220 V ~ 240 V; 50 Hz | Operating ambient temperature | -25 °C to +50 °C |
| Max. operating current | 100 A | IP rating | IP20 |
| Idle consumption16 |
16 W |
Weight | 5 100 g |
| Interface | RS485, 2-way powerline | Dimensions (LxWxH) | 400x142x147 mm |
