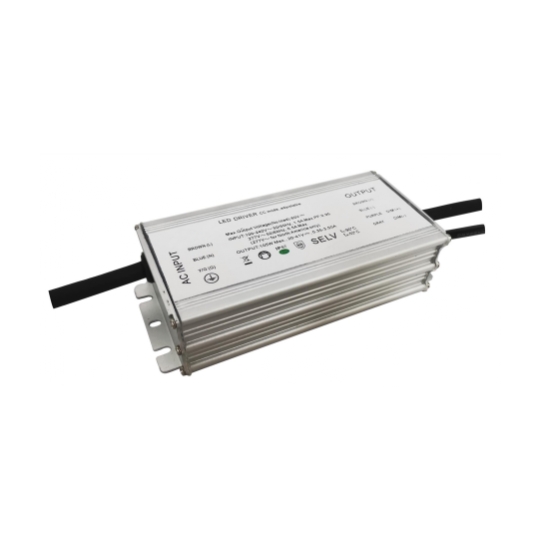

LED DRIVER SCC-240
Ordering code: SCC240XXX (XXX - number of model)
The LED DRIVER SCC-240 is programmable driver with multiple dimming capability 0-10 V or PWM and adjustable output current by software.
- One-way powerline communication QM-50-SSI3
- Built-in module for smart dimming and power line control
- Adjustable output current by software
- Protections: SCP/OVP/OTP
- IP67 design for indoor and outdoor applications
| Typ | Model | Output voltage (V) | Rated Current (A) |
|---|---|---|---|
| SCC 240W | 041 | 20-41 | 5.86-7.5 |
| 062 | 38-62 | 3.88-5.71 | |
| 086 | 43-86 | 2.8-4.2 | |
| 171 | 85-171 | 1.4-2.1 | |
| 229 | 114-229 | 1.05-1.5 | |
| 343 | 171-343 | 0.7-1.05 |
Note: Possibility to adjust output parameters according to customers requirement
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | 220 - 240 VAC | IP rating | IP67 |
| Input frequency | 50 Hz | Operating temperature | -40 °C to +70 °C |
| Input current |
0.44 A / 230 VAC |
Maximum case temperature | +80 °C |
| Power factor | 0.96 / 230 VAC | Weight | 745 g |
| Efficiency | 88% | Dimensions (LxWxH) | 177x65.5x39.5 mm |
