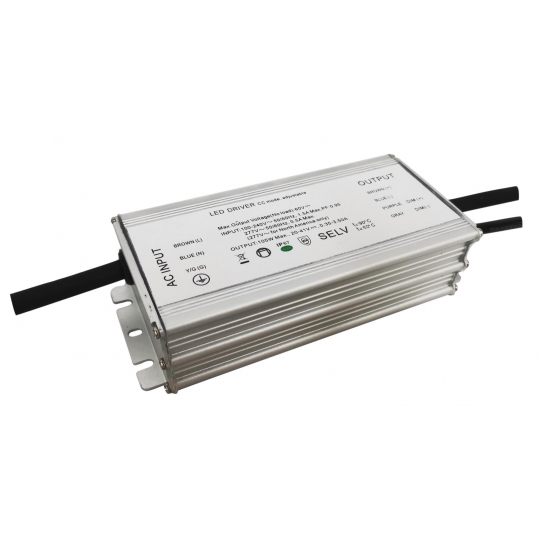

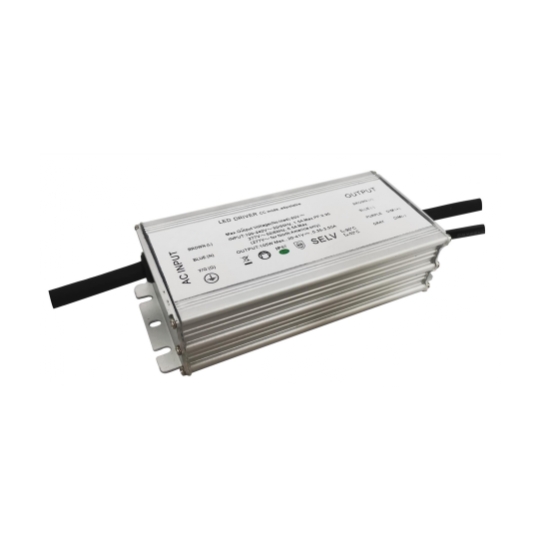

LED DRIVER SCC-105
Ordering code: SCC105XXX (XXX - number of model)
The LED DRIVER SCC-105 is programmable driver with multiple dimming capability 0-10 V or PWM and adjustable output current by software.
- One-way powerline communication QM-50-SSI3
- Built-in module for smart dimming and power line control
- Adjustable output current by software
- Protections: SCP/OVP/OTP
- IP67 design for indoor and outdoor applications
| Typ | Model | Output voltage (V) | Rated Current (A) |
|---|---|---|---|
| SCC 105W | 041 | 20-41 | 2.56-3.50 |
| 062 | 38-62 | 1.69-2.50 | |
| 100 | 50-100 | 1.05-1.40 | |
| 150 | 75-150 | 0.70-1.05 |
Note: Possibility to adjust output parameters according to customers requirement
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | AC 220 V ~ 240 V | IP rating | IP67 |
| Input frequency | 50 Hz | Operating temperature | -40~+60 °C |
| Rated power |
105 W |
Maximum case temperature | +90 °C |
| AC Current (Max.) | 0.7 A max. at AC 230 V | Weight | 700±50g |
| Current Tolerance | <5% | Dimensions (LxWxH) | 154x66.2x36.8 mm |
