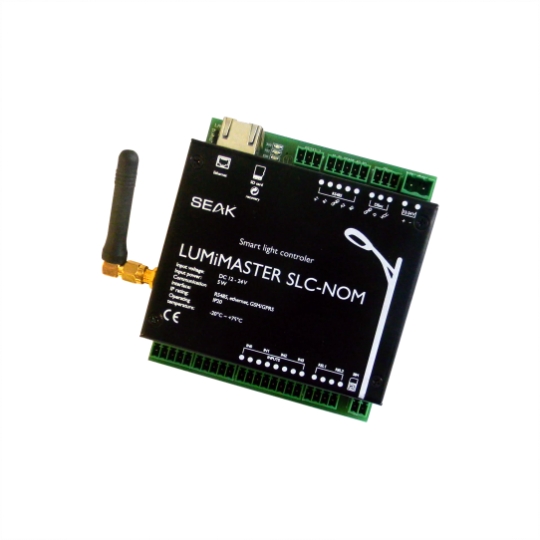

LUMiMASTER SLC-NOM
Ordering number: SLCNOM2023
The LUMiMASTER SLC-NOM (Smart Light Controler) is a control unit for smart lighting and dynamic load balancing (DLB) for electric cars and check of exceeding the maximum reserved capacityIt enables autonomous, local and remote management of lighting and charging. This unit works with all of current SEAK modulation units and EV chargers.
- Control unit for LUMiBOX and PANTER PNT
- Support for integration of electric car chargers with shared power balancing (dynamic load balancing - DLB)
- Charger management backend communication with OCPP 1.6J standard
- Check of exceeding the maximum reserved capacity
- Simple user interface based on built-in web server
- Display location of ballasts via google maps
- Remote access through ethernet or GSM/GPRS
- Built-in Ethernet port and GPRS/EDGE router/4G or 5G (optional)
- DIN rail mount
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | DC 12 - 24 V | IP rating | IP20 |
| Input power | 5,5 W | Communication with user | web interface |
| Inputs |
4x digital DC 5 - 24 V |
Weight | 320 g |
| Communication interfaces | 2xRS485, Ethernet 10/100 Base T, GSM |
Dimensions (LxWxH) | 100x110x50 mm |
